Design¶

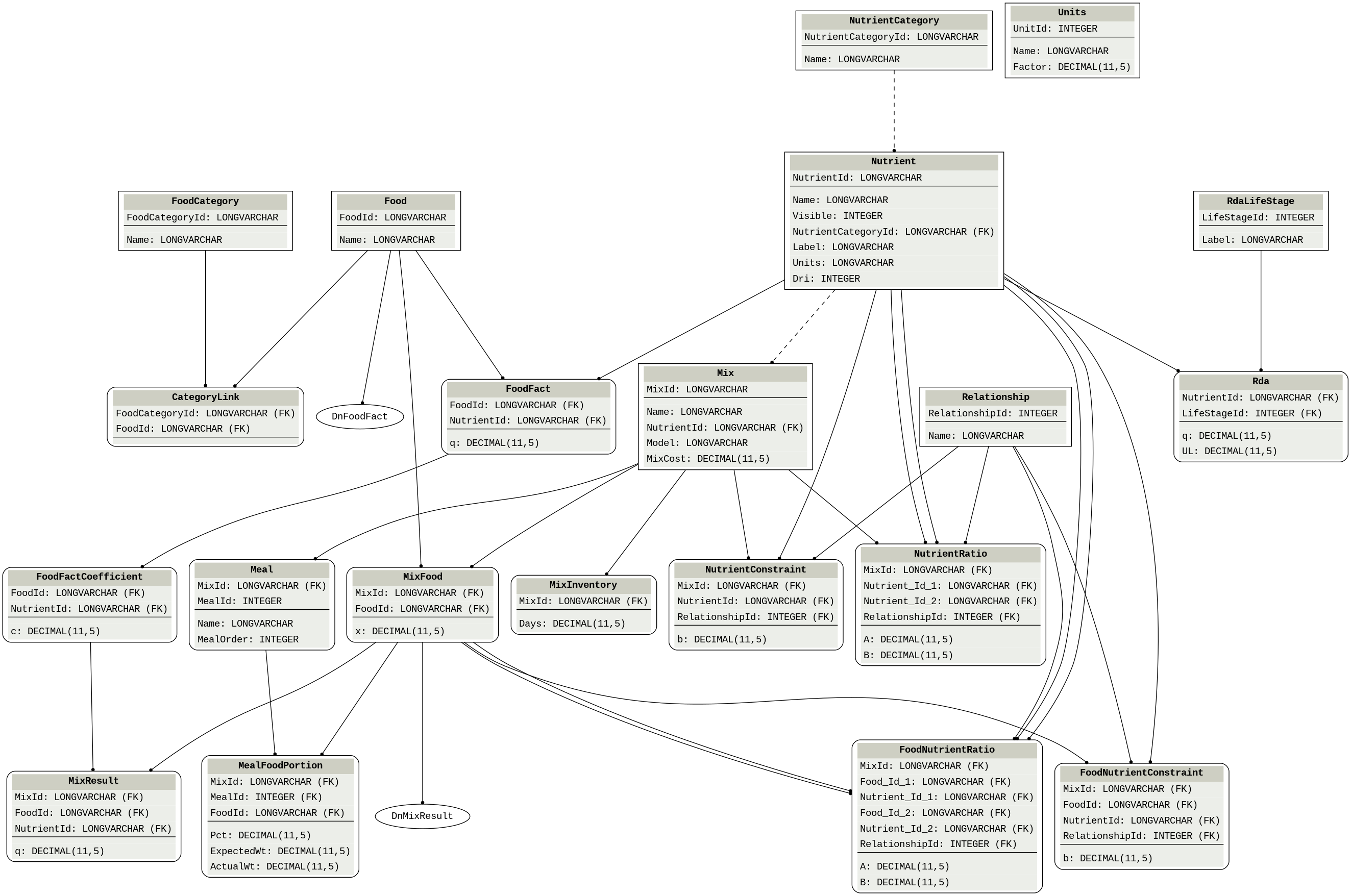

entity relationship diagram — This is the relational database entity relationship (er) diagram.¶

It shows relationships between database tables
Source code was generated with PotatoSql and diagram with graphviz
Diagram uses Idef1X Language notation although it is not a formal Idef1X diagram.
